Project Three
Tan Tran, Sarah Polzer, Joshua Cho
The Tacoma Narrows
Bridge
A mathematical model was created by McKenna and Tuama to capture the Tacoma Narrows Bridge incident. The
goal of the model was to explain how torsional oscillations can be magnified by
force that is strictly vertical.

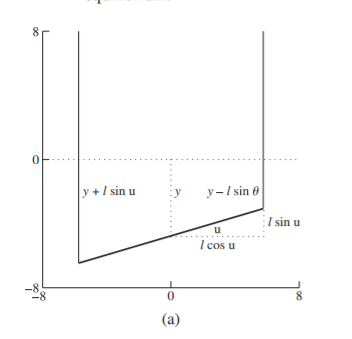

Assume that a roadway of width 2l is hanging between
two cables. The roadway sits at an equilibrium height at rest, and y represents
the current distance that the roadway hangs below this equilibrium. Theta is
the angle that the roadway makes with the horizontal and the two cables stretch
from equilibrium at y + lsinθ and y - lsinθ. It is also assumed
that there is a damping coefficient that is proportional to the velocity.
Hooke’s law
proposes a linear response, or that the restoring force of the cables will be
proportional to the deviation. Hooke’s constant K and Newton’s law (F=ma)
combined made the two equations of motion for y and theta below.
However, Hooke’s law was
designed for springs with restoring forces that are equal when the spring is
compressed or stretched. McKenna and Tuama believed
that the cables pulled back with more force when stretched than when

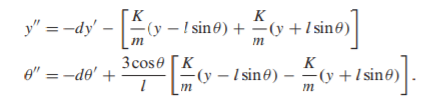

compressed. They replaced the linear restoring force in Hooke’s law with a
nonlinear force. Their equations of motion are pictured below.
Question 1)
Run tacoma.m
with wind speed W = 80 km/hr and initial conditions y
= y′ = θ′ = 0, θ = 0.001. The bridge is stable in the torsional dimension if
small disturbances in θ die out; unstable if they grow far beyond original
size. Which occurs for this value of W?

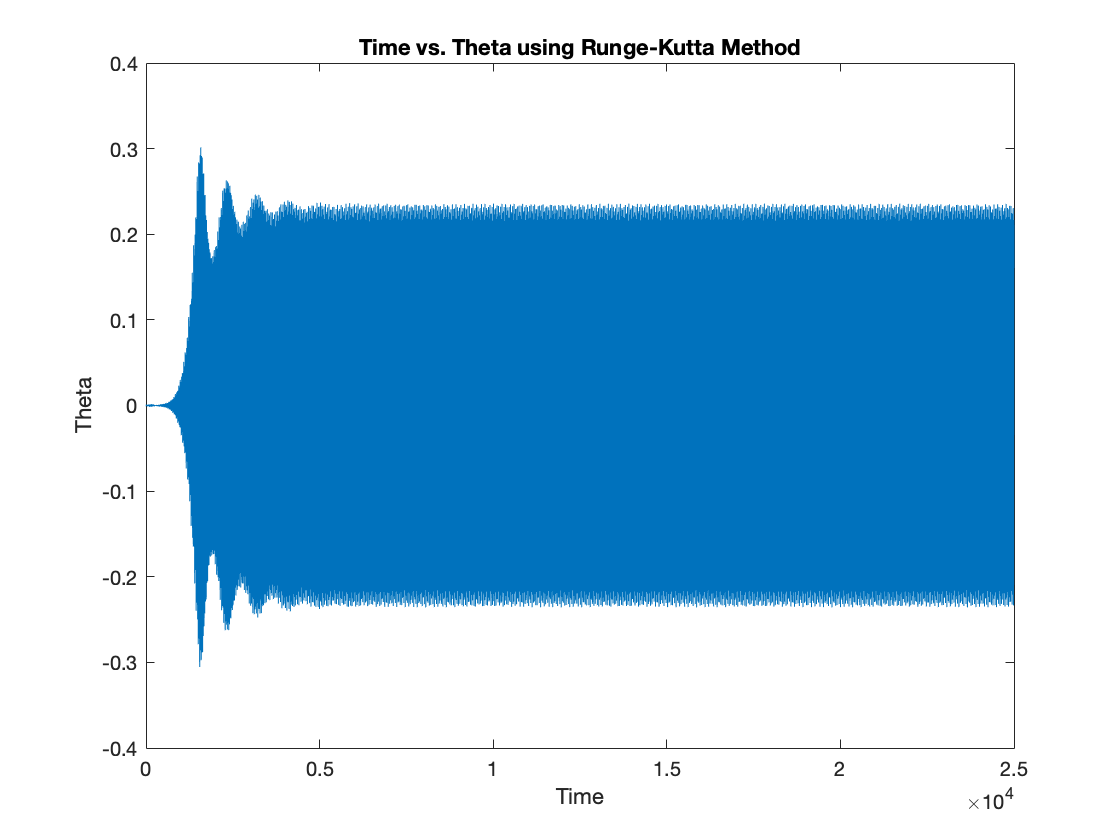

For a windspeed of 80 km/hr, theta
initially increased 300-fold and then came back to about 200 magnification. In
the image, at around time = 0.2, theta
shot up to 0.3 from zero. Theta increased sharply and then oscillated and
eventually settled down at 0.2; the bridge was very unstable and then
stabilized at a theta of 0.2. Theta still grew far beyond its original size, so
the bridge was unstable in the torsional dimension. We used Runge-Kutta in this part as well as the Trapezoid Method because
we are committed to scientific accuracy.
Question 2)
Replace the Trapezoid
Method by fourth-order Runge–Kutta to improve
accuracy. Also, add new figure windows to plot y(t) and θ(t).

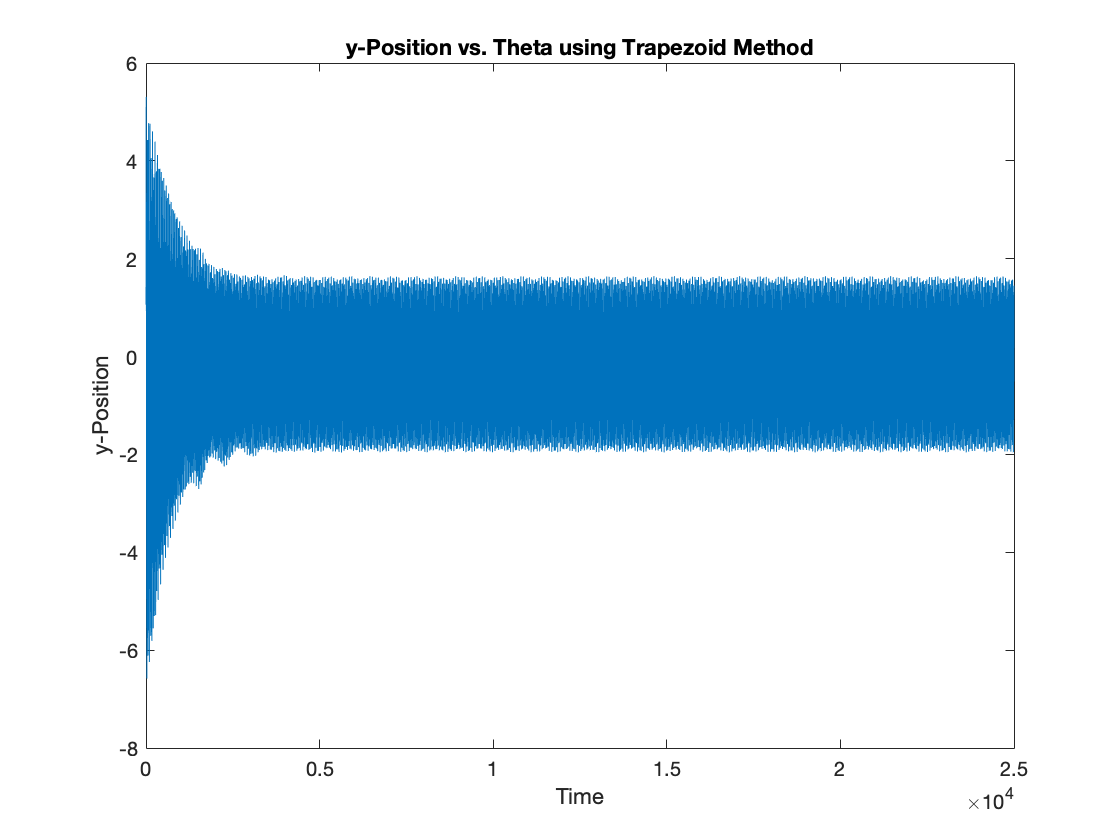

y(t) stabilized at about 2 meters, with a delta of 4 meters.

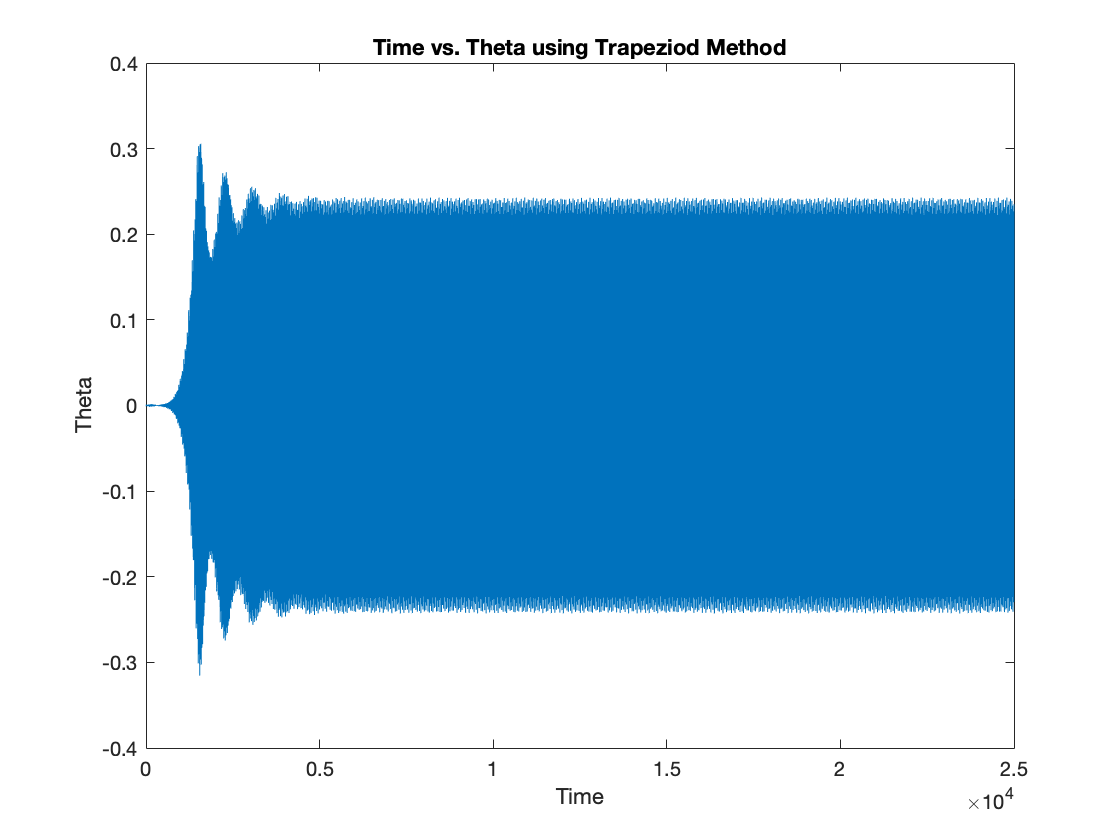

Again, our max magnification using the Runge-Kutta method was 301.4491. We next look at the inferior
Trapezoid method which returned us a magnification of 305.6322.
As we can see, the graphs look very similar at visual inspection,
but the raw numbers tell us otherwise.
Question 3)
The system is torsionally
stable for W = 50 km/hr. Find the magnification factor for a small initial
angle. That is, set θ(0) = 10−3 and find the ratio of the maximum angle θ(t), 0
≤ t < ∞, to θ(0). Is the magnification factor approximately consistent for
initial angles θ(0) = 10−4, 10−5,...?

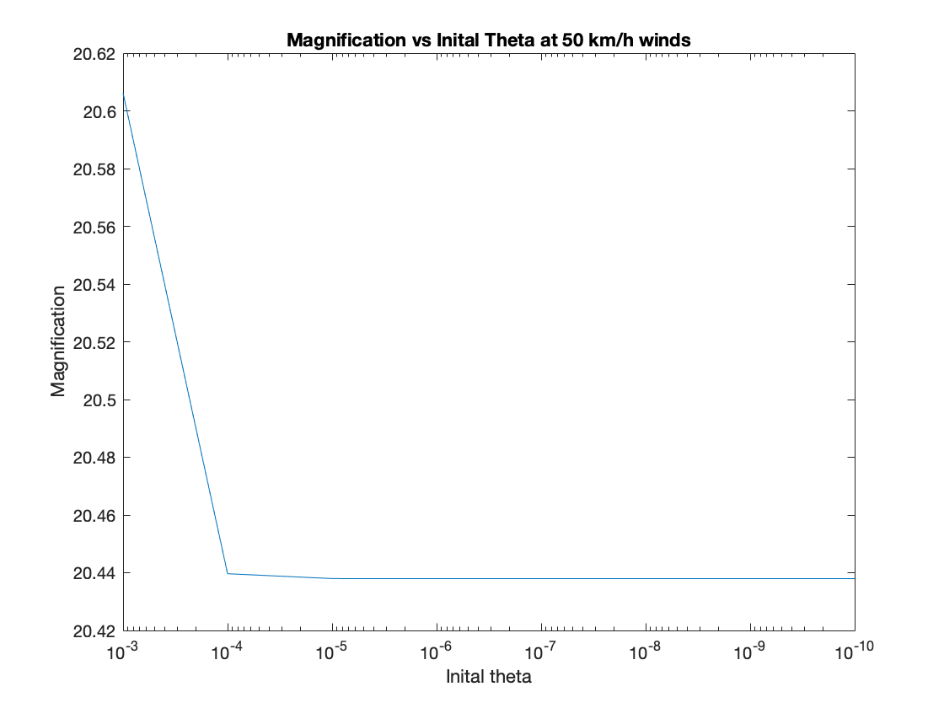

Output for Theta vs. Magnification:
Initial Theta |
Magnification |
0.001 |
20.6062 |
0.0001 |
20.4397 |
10-5 |
20.438 |
10-6 |
20.438 |
10-7 |
20.438 |
10-8 |
20.438 |
10-9 |
20.438 |
10-10 |
20.438 |
The magnification factor for an initially small angle (0.001)
was 20.6062. The magnification factor was in fact consistent for θ(0) = 10−4,
10−5, not deviating far from 20.44.
Question 4)
Find the minimum wind
speed W for which a small disturbance θ(0) = 10−3 has a magnification factor of
100 or more. Can a consistent magnification factor be defined for this W?

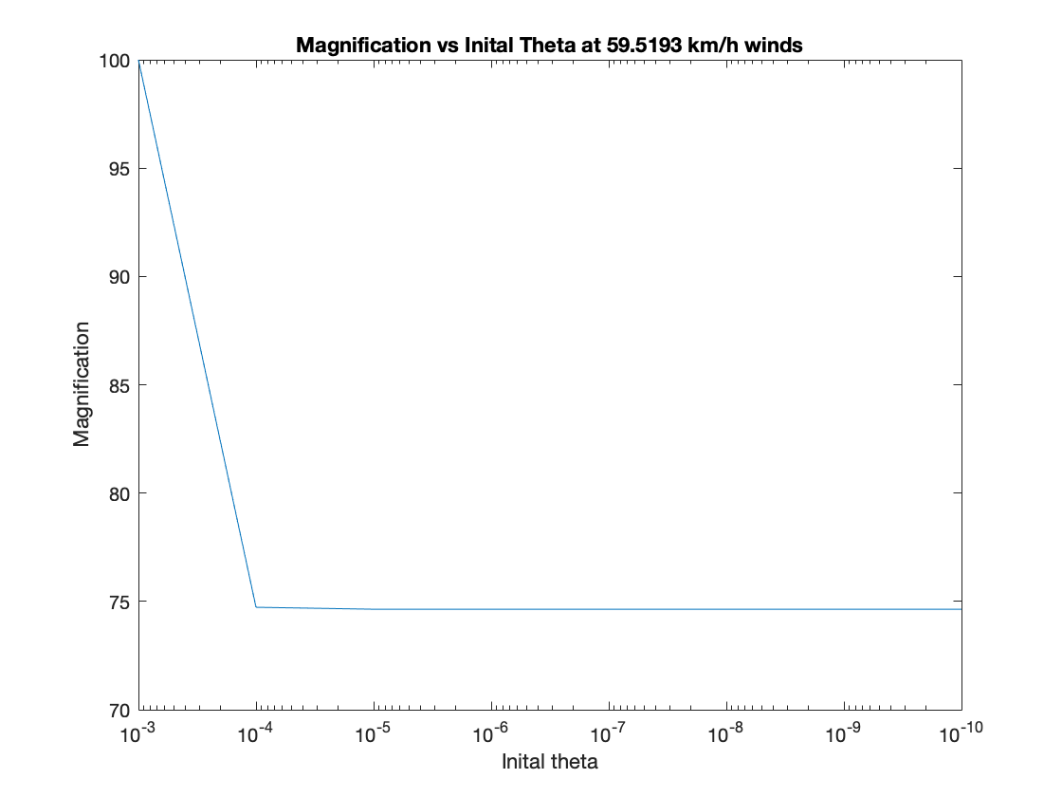

The minimum wind speed for which a small disturbance had a
magnification factor of 100 or more was 59.5193 km/hr. A
consistent magnification factor cannot absolutely be defined for this W because
when theta is changed, there can be drastic changes in the magnification
factor. For example, for a theta of 0.001, the magnification factor at
W=59.5193 km/hr was 99.9994; whereas, for a theta of 0.0001, the magnification
factor was 74.7284. However, at thetas smaller than 0.0001, the magnification
factor stayed stable at around 74.6. A consistent magnification factor can be
defined for thetas smaller than 0.0001.
–
Question 5)
Design and implement a
method for computing the minimum wind speed in Step 4, to within 0.5 × 10−3
km/hr. You may want to use an equation solver from Chapter 1
Running the bisection method, we found that the minimum
windspeed was 59.519 km/hr.
Question 6)
Try some larger values
of W. Do all extremely small initial angles eventually grow to catastrophic
size?

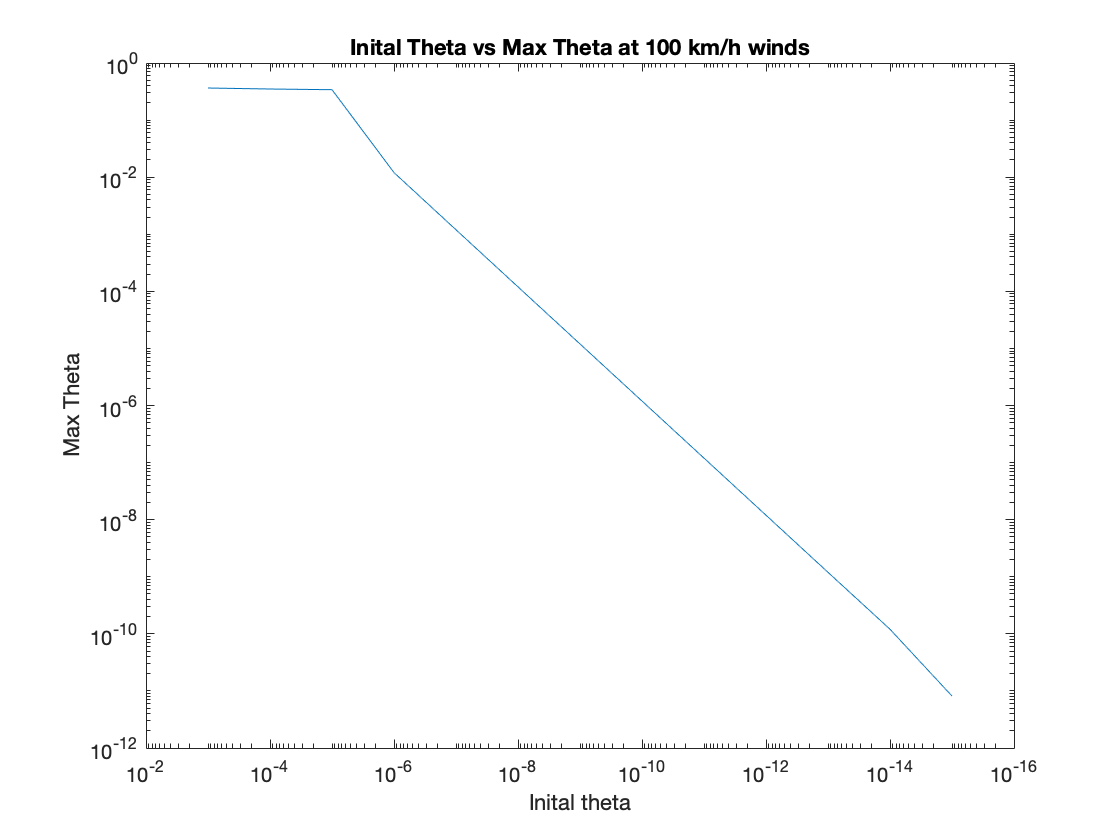

No, we found that at 100km/h winds,
the max theta became safe at around 10-6 initial theta. However,

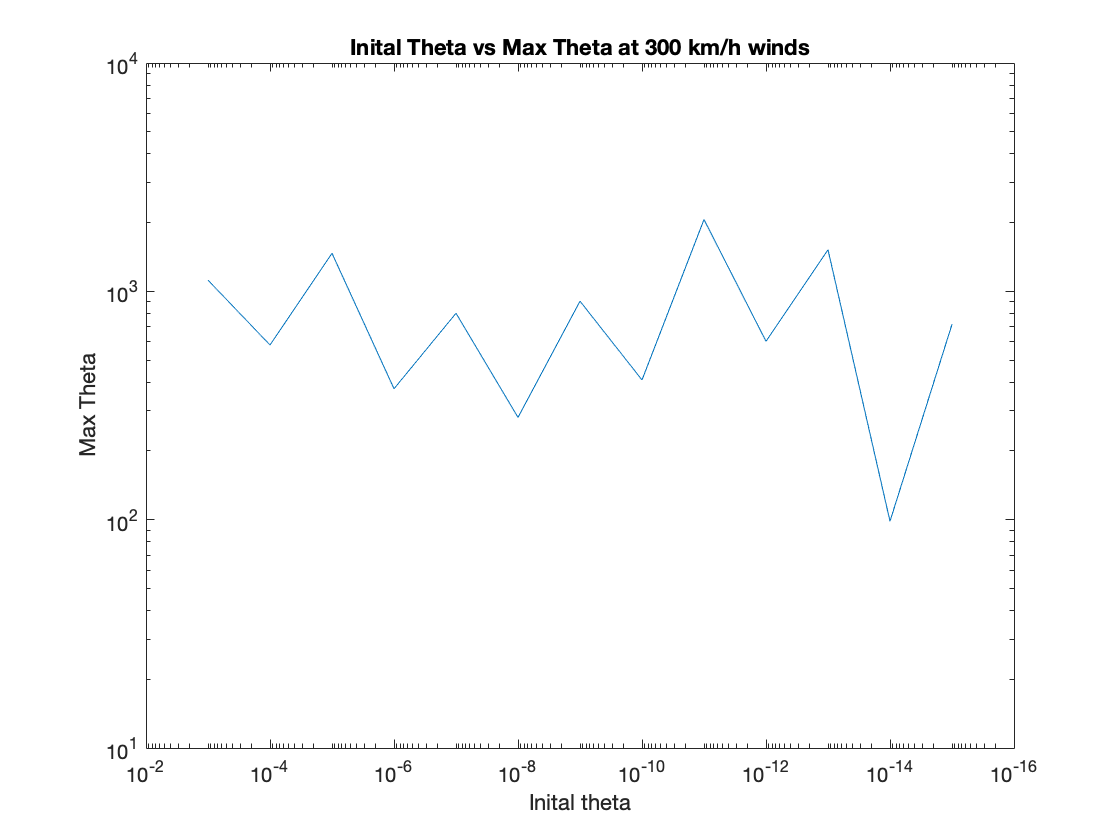

when we bump the windspeed to a somewhat ridiculous 300km/h, not even an
initial theta of 10-15 would be able to save this bridge.
Question 7)
What is the effect of
increasing the damping coefficient? Double the current value and find the
change in the critical wind speed W. Can you suggest possible changes in design
that might have made the bridge less susceptible to torsion?
–

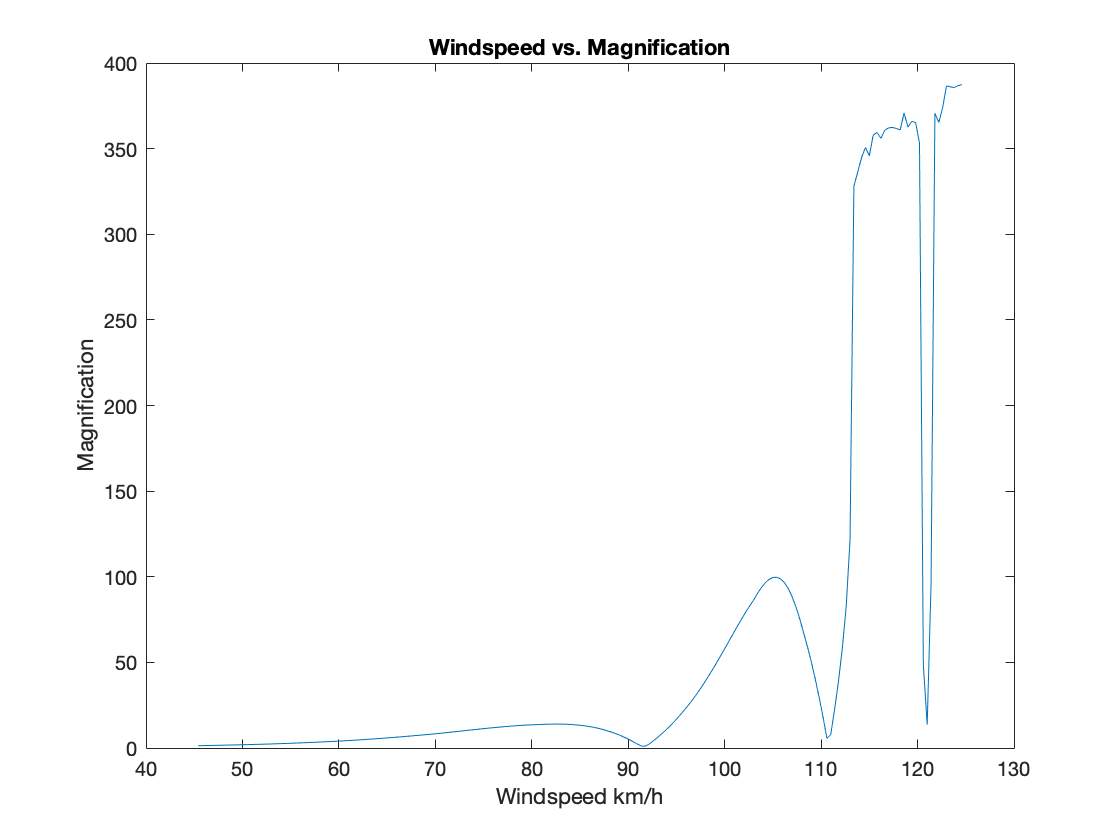

As we can see, doubling the damping coefficient allows the
bridge to remain relatively stable in winds exceeding 90km/h. Some possible
changes may be to have a heavier road or thicker cables that stretch less while
also having more mass.
