Steric Energies of n-propyl Chloride using SciFinder Scholar's Image

Before Minimizing the Energy

After Minimizing the Energy

Difference of Measurements

Stretch

0.4734

0.0001

0.4733

Bend

0.0207

0.0003

0.0204

Stretch-Bend

-0.001

Torsion

Non-1,4 VDW

1,4 VDW

-0.1153

-0.1165

0.0012

Total

0.3777

-0.1161

0.4938

C(1)-C(2) Bond

1.54

1.515

0.025

C(1)-C(3) Bond

1.54

1.523

0.017

C(2)-Cl(4) Bond

1.767

1.795

-0.028

C(2)-C(1)-C(3) Angle

109.503

109.323

0.18

C(1)-C(2)-Cl(4) Angle

109.498

108.222

1.276

C(3)-C(1)-C(2)-Cl(4) Angle

180

The values of the Steric Energies of Propyl Chloride that were calculated
before the minimization of the energy were all greater than the values
after the minimization. Stretch and Bend values were greatly reduced
after the minimization, but the other values were fairley similar as before.
As far as the Angle measurements, the C(1), C(2), C(3) Angle changed

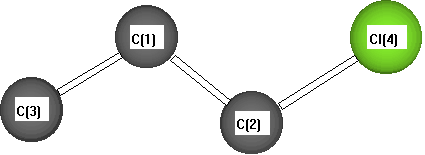

almost 1.3 °. The pictuer bellow was originally made in SciFinderScholar.
