Project 1

Reality Check 2: The Euler-Bernoulli Beam

By James Collier, Deanna Easley, and Robert Truong

\(\\\)

The Euler-Bernoulli beam is a mathematical model for a beam of material bending under stress represented by the equation \[EIy''''=f(x)\] where \( f(x)\) is the applied load (including the weight of the beam), \(y(x)\) is the function that represents the vertical displacement of the beam, where \(0\leq x\leq L\) and \(L\) is the length of the beam. The quantities \(E\) and \(I\) are the constant Young's modulus of the material and the constant area moment of inertia, respectively.

(1) In order to define the structure of our banded matrix \(A\), we hard-coded the fixed rows and implemented a nested for loop in Matlab to fill in the rows that depend on \(n\), where \(n\) is defined as the number of grid steps. Using MATLAB's \ command for matrix division, we solved our system of equations for the displacements \(y_i\) for \(n=10\), and plotted the approximate solution on the interval \([0,2]\).

(2) For part 2, we plotted our approximate solution against the correct solution \( y(x) \), as well as the absolute error over the domain of \(x\). Since the derivative approximations are exact in this case, the error is near machine roundoff.

code for part 2

(3) Tasked with determining the n value which minimizes error for \(n=2\times 10^{\, k}\) and \(k=1,\dots,10\), we proceeded by making a table of the errors corresponding to each \(n\) value. Based on our results, the error is minimal in the case \(n=20\), and strictly increases with the \(n\) values included in our program. Our accompanying table of the condition number of matrix \(A\), which shows that the condition number also increases with \(n\), indicates that the increased error associated with increasing \(n\) is attributed to rounding error as a result of our matrix becoming ill-conditioned as \(n\) increases.

code for part 3

(4) Given \( s(x)=-pg\sin\big(\frac{\pi}{L}x\big) \), we need to show that \( EIy''''(x)=f+s(x) \) by solving for \( y''''(x) \), where \( y(x)=\frac{f}{24EI}x^2(x^2-4Lx+6L^2)-\frac{pgL}{EI\pi}\Big(\frac{L^3}{\pi^3}\sin\big(\frac{\pi}{L}x\big)-\frac{x^3}{6}+\frac{L}{2}x^2-\frac{L^2}{\pi^2}x\Big). \)

\begin{eqnarray*} y'(x)&=&\frac{f}{6EI}x(x^2-3Lx+3L^2)-\frac{pgL}{EI\pi}\Big(\frac{L^2}{\pi^2}\cos\big(\frac{\pi}{L}x\big)-\frac{L^2}{\pi^2}+Lx-\frac{x^2}{2}\Big)\\ y''(x)&=&\frac{f}{2EI}(L-x)^2-\frac{pgL}{EI\pi}\Big(-\frac{L\sin(\frac{\pi}{L}x)}{\pi}+L-x\Big)\\ y'''(x)&=&\frac{f}{EI}(x-L)-\frac{pgL}{EI\pi}\Big(\cos\big(\frac{\pi}{L}x\big)+1\Big)\\ y''''(x)&=&\frac{f}{EI}-\frac{pg}{EI}\sin\big(\frac{\pi}{L}x\big)=\frac{1}{EI}\Big(f-pg\sin\big(\frac{\pi}{L}x\big)\Big)=\frac{1}{EI}(f-s(x)). \end{eqnarray*}

Thus, multiplication by \(EI\) yields \(EIy''''(x)=f+s(x)\). Therefore, equation \(EIy''''(x)=f+s(x)\) holds.

Now we need to show that the boundary conditions \( y(0)=y'(0)=y''(L)=y'''(L)=0 \) hold.

\begin{eqnarray*} y(0)&=&\frac{f}{24EI}(0)^2((0)^2-4L(0)+6L^2)-\frac{pgL}{EI\pi}\Big(\frac{L^3}{\pi^3}\sin\big(\frac{\pi}{L}(0)\big)-\frac{(0)^3}{6}+\frac{L}{2}(0)^2-\frac{L^2}{\pi^2}(0)\Big)\\ &=&0-\frac{pgL}{EI\pi}\Big(\frac{L^3}{\pi^3}(0)-0+0-0\Big)%\\& =0\\ \\ y'(0)&=&\frac{f}{6EI}(0)((0)^2-3L(0)+3L^2)-\frac{pgL}{EI\pi}\Big(\frac{L^2}{\pi^2}\cos\big(\frac{\pi}{L}(0)\big)-\frac{L^2}{\pi^2}+L(0)-\frac{(0)^2}{2}\Big)\\ &=&0-\frac{pgL}{EI\pi}\Big(\frac{L^2}{\pi^2}(1)-\frac{L^2}{\pi^2}+0-0\Big)=-\frac{pgL}{EI\pi}\Big(\frac{L^2}{\pi^2}-\frac{L^2}{\pi^2}\Big)=-\frac{pgL}{EI\pi}(0)=0\\ \\ y''(L)&=&\frac{f}{2EI}(L-L)^2-\frac{pgL}{EI\pi}\Big(-\frac{L\sin(\frac{\pi}{L}L)}{\pi}+L-L\Big)=0-\frac{pgL}{EI\pi}\Big(-\frac{L\sin\pi}{\pi}\Big)=0\\ \\ y'''(L)&=&\frac{f}{EI}(L-L)-\frac{pgL}{EI\pi}\Big(\cos(\frac{\pi}{L}L)+1\Big) =0-\frac{pgL}{EI\pi}\Big(-1+1\Big)=0\\ \end{eqnarray*} Therefore, we have verified that all boundary conditions are indeed satisfied.

\( \\ \)

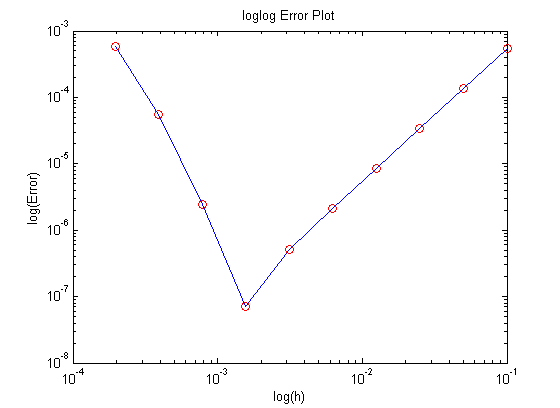

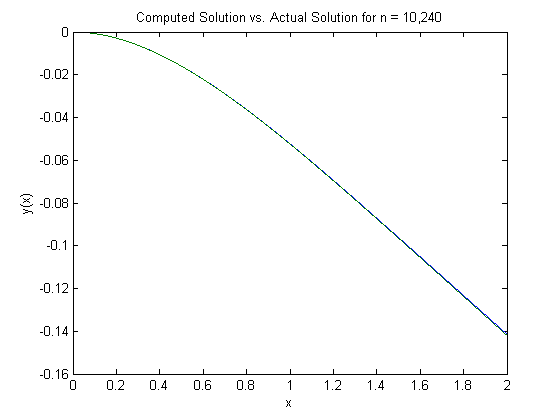

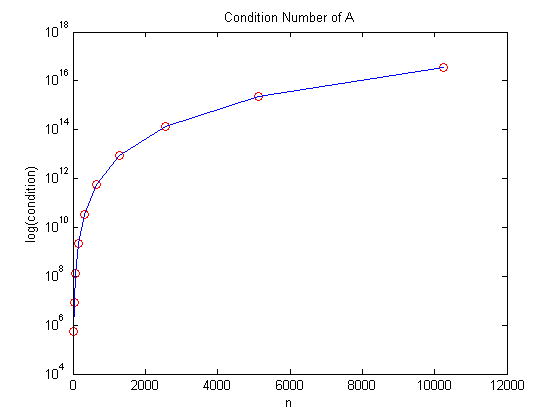

(5) We repeated the procedure done in part 3, except the force function \( f(x) \) was changed to add a sine term to it. This sine term now makes the matrix approximation inexact, so in this case, the error goes down as \(h\) gets smaller. The \(n\) where the error is least small is at \(k = 7\), so \(n = 1280\). In the loglog plot below, up until \(k = 7\), the slope of the line is pretty roughly 2 — more exactly, the slope from regressing the first six points is \(\sim 2.0026829501\) with an \(r^2\) of \(\sim .9999899115\). This indicates that the error is basically proportional to \(h^2\) for that portion of the graph, so every time \(k\) increases by one, \(n\) doubles, \(h\) gets cut in half, and the error approximately shrinks by one-fourth. At \(n = 1280\), though, the error shrinks by a factor greater than the expected \(\frac{1}{4}\), and from \(k = 8\) onwards, though, the matrix's increasing ill-conditionedness (i.e. increasing condition number) begins to overtake the benefits of decreasing the size of \(h\), so the error starts going up drastically.

code for part 5

(6) The n used for this part was 1280, because that was the optimal value for (5). We use this value to choose our step size for a different \(f(x)\) without a given exact solution, which models a diver standing at the end of a board. Using this step size, we generate and solve the matrix to get an estimate of the solution, which is displayed on the graph below. The generated solution for that ended up being a displacement of \(-0.247728119658220\) meters.

code for part 6

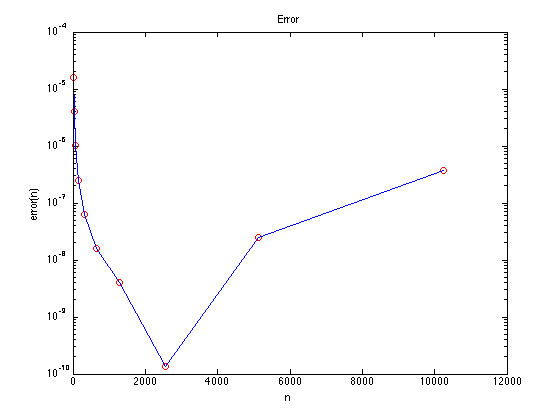

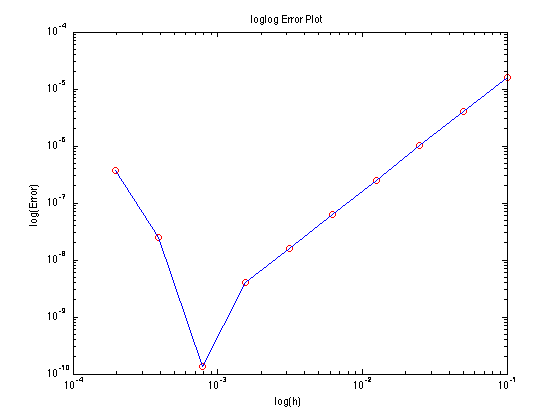

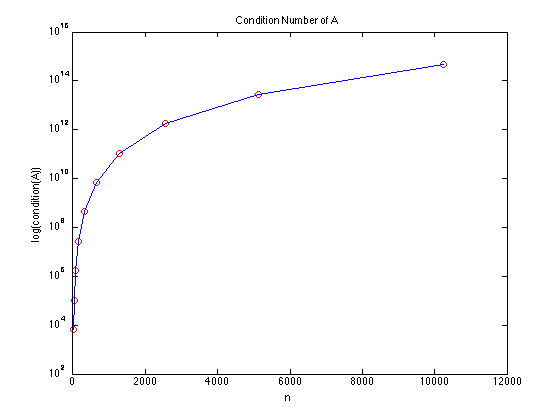

(7) The results of this are largely similar to (5), in the sense that the error shrinks more or less constantly up until a point, which here is the eighth point, \(n = 2559\), after which the increasing condition number begins to overtake the benefits of decreasing \(h\) further and raises the error. Doing a linear regression on the first seven points again yields a slope very close to 2 (more exactly, a slope of 2.0006508491 with an \(r^2\) of .9999999899), showing a more or less identical correlation to (5) between the error and \(h^2\). The error then shrinks more than expectedly at the eighth point \(n = 2559\) and starts vastly increasing from the ninth point (\(n = 5119\)) and onwards.

code for part 7

\(\\\)

\(\\\)
