Project 1: Euler Beams

Team Members: Alex Kayser and Xander Herrick

This problem seeks to model what happens when a material bends under stress.
To show this, we take the Euler-Bernoulli equation and attempt to discretize it.
There is an error associated with discretization, and for our discretization
we are dividing the beam into a union of many segments of length h, which will
give us a sequence of linear equations, which is shown in a matrix. We can then
compare our results from discretization (which has an associated error) against the
correct solution and determine which value of h results in the most accurate discretization.

Functions can be found here and all source code can be found in this GitHub repo.

Setup

%First, we need to set our constants for use in the entire rest of
%the project

%Beam is a constant 2 meters long
L= 2;

%Gravitational constant
g = 9.81;

%Beam is a constant 30cm wide
w = 0.3;

%Beam is a constant 3cm thick
d = 0.03;

%Young's modulus and the area moment of inertia - always used together
EI = (1.3 * 10^10) * (w * d^3 / 12);

Part 1

% Define a matrix which allows us to solve for the displacements using n=10 grid steps.

noload = @(x) -480 * w * d * g;

y = eulermx(10, noload)

y =

  -0.000180624738462
  -0.000674847507692
  -0.001416986584615
  -0.002349087507692
  -0.003420923076923
  -0.004589993353846
  -0.005821525661539
  -0.007088474584616
  -0.008371521969231
  -0.009659076923077

Part 2

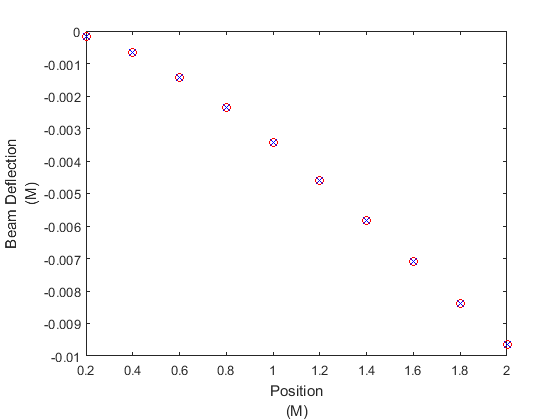

% Plot the solution from Part 1 against the known correct formula
% for a Euler Beam with no load

noloadc = @(x) (noload(x) / (24*EI)) * x^2 * (x^2 - 4*L*x + 6*L^2);

plotcompare(10, noload, noloadc);
xlabel({'Position','(M)'});
ylabel({'Beam Deflection','(M)'});

Part 3

% Rerun the calculation for a number of exponentially increasing n
% values, comparing and plotting the error for each value

n = 10;
k = 11;

ns = n * arrayfun(@(x) 2.^x, (0:k))';
e = errorcomp(ns, noload, noloadc);
c = condcomp(ns);

errortable(ns, e, c)

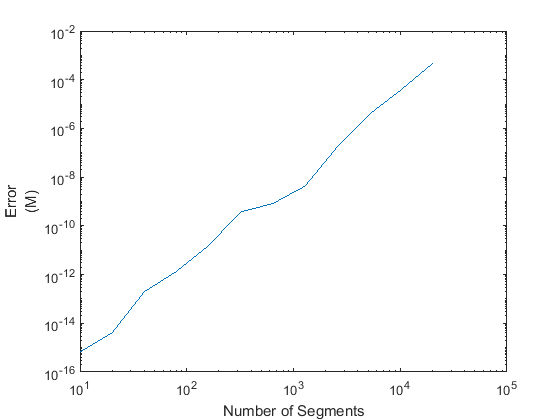

loglog(ns, e);
xlabel('Number of Segments');
ylabel({'Error','(M)'});


ans =

  12×3 table

      n        error       condition
    _____    __________    __________

       10    6.6093e-16         33254
       20    4.0575e-15     5.303e+05
       40    1.9687e-13    8.4493e+06
       80    1.3385e-12    1.3482e+08
      160    1.5524e-11    2.1539e+09
      320     3.746e-10    3.4435e+10
      640    8.2035e-10    5.5073e+11
     1280    4.2696e-09    8.8099e+12
     2560    1.7006e-07    1.4094e+14
     5120     3.797e-06    2.2549e+15
    10240    3.9358e-05    3.6176e+16
    20480    0.00049639    6.1571e+17

Part 4 - Link

% Prove that the given formula for a sinusoidal load properly
% fulfills all requirements for a Euler Beam

Part 5

% Calculate error values for the sinusoidal load and use them to
% determine the optimal value of n to get maximum accuracy

sinload = @(x) noload(x) - 100 * g * sin(pi * x / L);

sinloadc = @(x) noloadc(x) - (100 * g * L / (EI * pi)) * (L^3 / pi^3 * sin(pi / L * x) - x^3 / 6 + L / 2 * x^2 - L^2 / pi^2 * x);

e = errorcomp(ns, sinload, sinloadc);

errortable(ns, e, c)

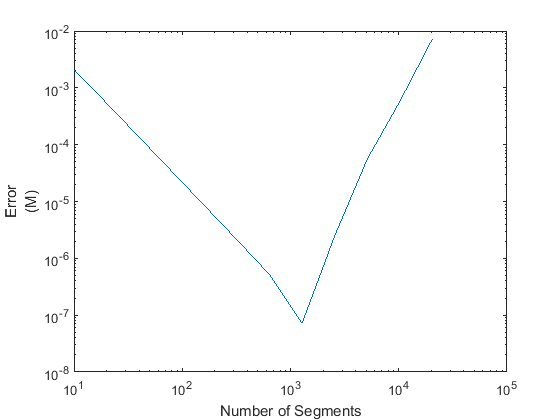

loglog(ns, e);
xlabel('Number of Segments');
ylabel({'Error','(M)'});

ans =

  12×3 table

      n        error       condition
    _____    __________    __________

       10     0.0020828         33254
       20     0.0005377     5.303e+05
       40    0.00013546    8.4493e+06
       80    3.3931e-05    1.3482e+08
      160    8.4865e-06    2.1539e+09
      320    2.1164e-06    3.4435e+10
      640    5.1829e-07    5.5073e+11
     1280    7.2107e-08    8.8099e+12
     2560    2.4803e-06    1.4094e+14
     5120    5.5817e-05    2.2549e+15
    10240    0.00057853    3.6176e+16
    20480     0.0072957    6.1571e+17

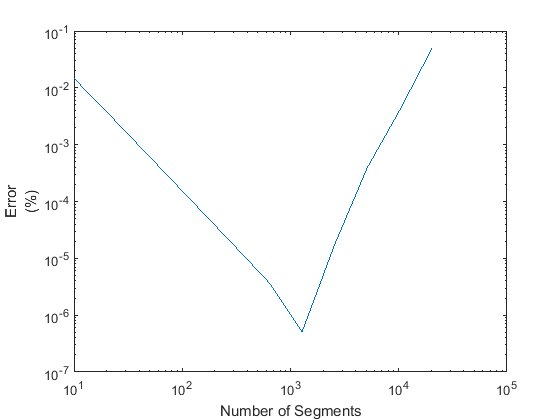

loglog(ns, e/-sinloadc(2));
xlabel('Number of Segments');
ylabel({'Error','(%)'});

Part 6

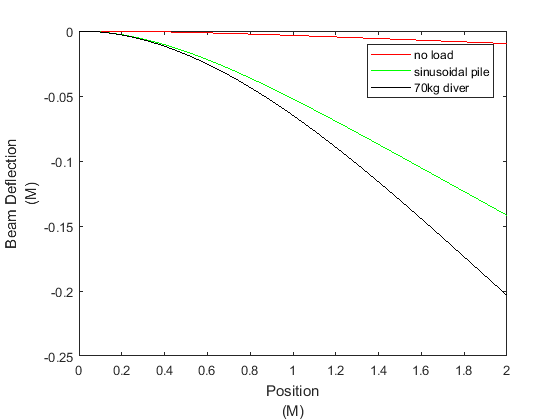

% Replace the sinusoidal load with a 70kg diver on the last 20cm
% and plot the resulting Euler Beam

n = 1280;

diverload = @(x) noload(x) - ((x >= 1.8) * 70 / 0.2 * g);

h = L/n;
x = (h:h:L)';
y1 = eulermx(n, noload);
y2 = eulermx(n, sinload);
y3 = eulermx(n, diverload);

max_deflection = [y1(end) y2(end) y3(end)]'
plot(x, y1, 'r', x, y2, 'g', x, y3, 'k');
xlabel({'Position','(M)'});
ylabel({'Beam Deflection','(M)'});

max_deflection =

  -0.009659099207968
  -0.141759506430763
  -0.203411572381376

Part 7

% Modify the coefficient matrix to fulfill conditions for a
% clamped-clamped beam, then repeat part 5 for this beam

sinloadbc = @(x) (noload(x) / (24 * EI())) * x^2 * (L - x)^2 - (100 * 9.81 * L^2 / (pi^4 * EI())) * (L^2 * sin(pi / L * x) + pi * x * (x - L));

y1 = bridgemx(n, sinload);
y2 = eulerfn(n, sinloadbc);

plot(x, y1, 'r', x, y2, 'b');

n = 10;
k = 17;

ns = n * arrayfun(@(x) 2.^x, (0:k))';
e = bridgeerrorcomp(ns, sinload, sinloadbc);
c = condcomp(ns);

errortable(ns, e, c)

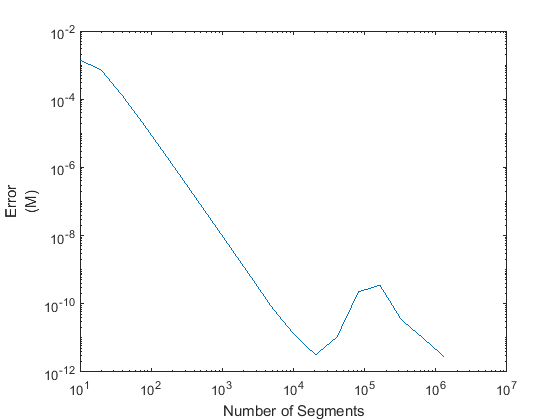

loglog(ns, e);
xlabel('Number of Segments');
ylabel({'Error','(M)'});


ans =

  18×3 table

        n           error       condition
    __________    __________    __________

            10     0.0014178         33254
            20    0.00070868     5.303e+05
            40    0.00012187    8.4493e+06
            80    1.7271e-05    1.3482e+08
           160    2.2845e-06    2.1539e+09
           320    2.9336e-07    3.4435e+10
           640    3.7156e-08    5.5073e+11
          1280    4.6748e-09    8.8099e+12
          2560    5.8619e-10    1.4094e+14
          5120    7.2365e-11    2.2549e+15
         10240    1.2453e-11    3.6176e+16
         20480     3.174e-12    6.1571e+17
         40960    1.0747e-11    1.7145e+19
         81920    2.2523e-10    9.1623e+19
    1.6384e+05    3.5116e-10    9.9647e+19
    3.2768e+05    3.3953e-11    1.5188e+20
    6.5536e+05     9.997e-12    3.0177e+20
    1.3107e+06    2.8024e-12    5.2493e+20

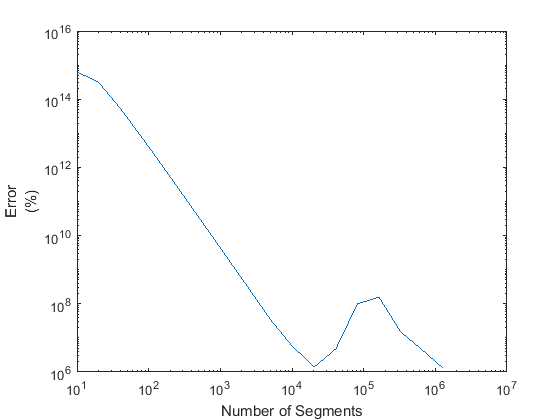

loglog(ns, e/-sinloadbc(2));
xlabel('Number of Segments');
ylabel({'Error','(%)'});
