Project 6: Google Page Rank and Eigenvectors

Aidan Curran

Contents

Background

Google page rank and eigenvectors Short Version

Eigenvalues and Singular Values Longer Version, Chapter 12 from Numerical Analysis textbook

**** This project is the shortened version ****

Problem 1

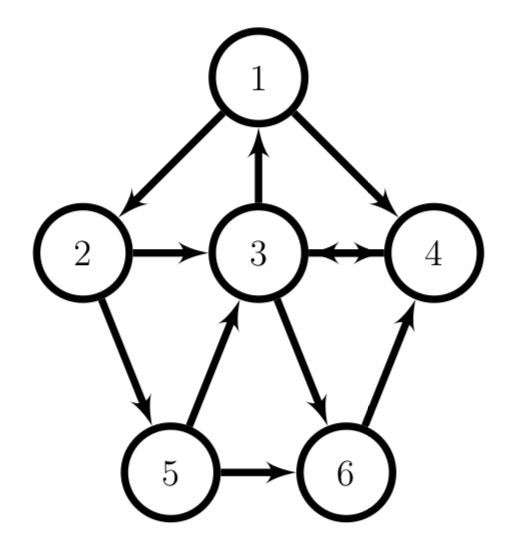

Find the adjacency matrix A and google matrix G for the following internet graph. Give the page rank vector, and rank all of the pages, from most to least important, according to page rank.

This is the adjacency matrix for the grpah above

A=[0 0 1 0 0 0
   1 0 0 0 0 0;
   0 1 0 1 1 0;
   1 0 1 0 0 1;
   0 1 0 0 0 0;
   0 0 1 0 1 0]

A =
     0     0     1     0     0     0
     1     0     0     0     0     0
     0     1     0     1     1     0
     1     0     1     0     0     1
     0     1     0     0     0     0
     0     0     1     0     1     0

D=diag(sum(A,1))

D =
     2     0     0     0     0     0
     0     2     0     0     0     0
     0     0     3     0     0     0
     0     0     0     1     0     0
     0     0     0     0     2     0
     0     0     0     0     0     1

G=A*inv(D)

G =
         0         0    0.3333         0         0         0
    0.5000         0         0         0         0         0
         0    0.5000         0    1.0000    0.5000         0
    0.5000         0    0.3333         0         0    1.0000
         0    0.5000         0         0         0         0
         0         0    0.3333         0    0.5000         0

[eigvec,eigval]=eig(G)

eigvec =
  Columns 1 through 4
  -0.2327 + 0.0000i  -0.1695 - 0.2357i  -0.1695 + 0.2357i  -0.1440 + 0.2566i
  -0.1163 + 0.0000i  -0.0582 + 0.1734i  -0.0582 - 0.1734i   0.1955 + 0.3340i
  -0.6981 + 0.0000i   0.6914 + 0.0000i   0.6914 + 0.0000i  -0.3357 + 0.0061i
  -0.6108 + 0.0000i  -0.3463 + 0.3758i  -0.3463 - 0.3758i  -0.4187 - 0.2760i
  -0.0582 + 0.0000i   0.1101 - 0.0340i   0.1101 + 0.0340i   0.5089 + 0.0000i
  -0.2618 + 0.0000i  -0.2274 - 0.2795i  -0.2274 + 0.2795i   0.1940 - 0.3208i
  Columns 5 through 6
  -0.1440 - 0.2566i  -0.4106 + 0.0000i
   0.1955 - 0.3340i   0.4488 + 0.0000i
  -0.3357 - 0.0061i   0.5634 + 0.0000i
  -0.4187 + 0.2760i  -0.2368 + 0.0000i
   0.5089 + 0.0000i  -0.4906 + 0.0000i
   0.1940 + 0.3208i   0.1258 + 0.0000i
eigval =
  Columns 1 through 4
   1.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i  -0.4634 + 0.6444i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.4634 - 0.6444i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.1921 + 0.3281i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  Columns 5 through 6
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.1921 - 0.3281i   0.0000 + 0.0000i
   0.0000 + 0.0000i  -0.4574 + 0.0000i

v=eigvec(:,1)

v =
   -0.2327
   -0.1163
   -0.6981
   -0.6108
   -0.0582
   -0.2618

v=v/sum(v)

v =
    0.1176
    0.0588
    0.3529
    0.3088
    0.0294
    0.1324

Page Ranks:

  1. Node 3 has the highest page rank
  2. node 4
  3. node 6
  4. node 1
  5. node 2
  6. node 5

Adding the vector values from v should equal 1

check = sum(v)

check =
    1.0000

Problem 2

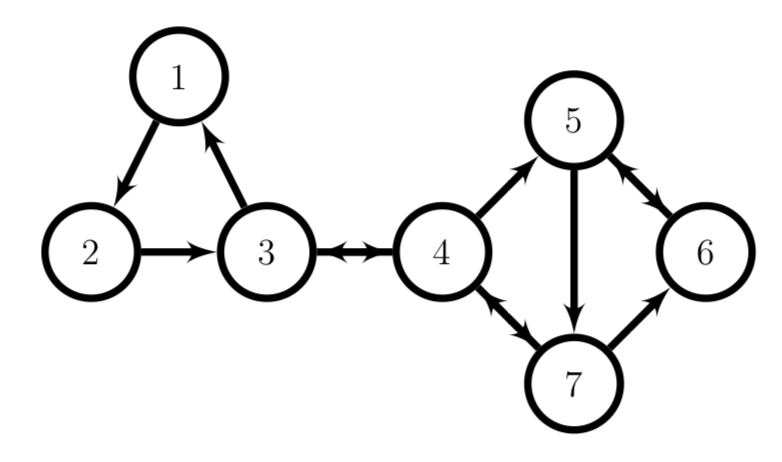

Same as Problem 1, for the following graph.

B=[0 0 1 0 0 0 0
   1 0 0 0 0 0 0;
   0 1 0 1 0 0 0;
   0 0 1 0 0 0 1;
   0 0 0 1 0 1 0;
   0 0 0 0 1 0 1;
   0 0 0 1 1 0 0]

B =
     0     0     1     0     0     0     0
     1     0     0     0     0     0     0
     0     1     0     1     0     0     0
     0     0     1     0     0     0     1
     0     0     0     1     0     1     0
     0     0     0     0     1     0     1
     0     0     0     1     1     0     0

D=diag(sum(B,1))

D =
     1     0     0     0     0     0     0
     0     1     0     0     0     0     0
     0     0     2     0     0     0     0
     0     0     0     3     0     0     0
     0     0     0     0     2     0     0
     0     0     0     0     0     1     0
     0     0     0     0     0     0     2

G=B*inv(D)

G =
         0         0    0.5000         0         0         0         0
    1.0000         0         0         0         0         0         0
         0    1.0000         0    0.3333         0         0         0
         0         0    0.5000         0         0         0    0.5000
         0         0         0    0.3333         0    1.0000         0
         0         0         0         0    0.5000         0    0.5000
         0         0         0    0.3333    0.5000         0         0

[eigvec,eigval]=eig(G)

eigvec =
  Columns 1 through 4
  -0.1043 + 0.0000i   0.2879 + 0.0000i  -0.2144 - 0.3340i  -0.2144 + 0.3340i
  -0.1043 + 0.0000i   0.3488 + 0.0000i  -0.2208 + 0.4822i  -0.2208 - 0.4822i
  -0.2085 + 0.0000i   0.4754 + 0.0000i   0.5941 + 0.0000i   0.5941 + 0.0000i
  -0.3128 + 0.0000i   0.1310 + 0.0000i  -0.0583 - 0.3239i  -0.0583 + 0.3239i
  -0.6255 + 0.0000i  -0.5151 + 0.0000i  -0.0862 - 0.1115i  -0.0862 + 0.1115i
  -0.5213 + 0.0000i  -0.4689 + 0.0000i   0.1245 + 0.0988i   0.1245 - 0.0988i
  -0.4170 + 0.0000i  -0.2591 + 0.0000i  -0.1390 + 0.1885i  -0.1390 - 0.1885i
  Columns 5 through 7
  -0.0108 + 0.0877i  -0.0108 - 0.0877i  -0.0458 + 0.0000i
   0.0795 - 0.0956i   0.0795 + 0.0956i  -0.2566 + 0.0000i
  -0.0544 - 0.1131i  -0.0544 + 0.1131i  -0.0164 + 0.0000i
  -0.0107 + 0.4270i  -0.0107 - 0.4270i   0.7610 + 0.0000i
   0.6301 + 0.0000i   0.6301 + 0.0000i  -0.4044 + 0.0000i
  -0.3731 + 0.0996i  -0.3731 - 0.0996i  -0.3259 + 0.0000i
  -0.2607 - 0.4055i  -0.2607 + 0.4055i   0.2881 + 0.0000i
eigval =
  Columns 1 through 4
   1.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.8255 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.4043 + 0.6298i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.4043 - 0.6298i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  Columns 5 through 7
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  -0.5977 + 0.3839i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i  -0.5977 - 0.3839i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.1785 + 0.0000i

v=eigvec(:,1)

v =
   -0.1043
   -0.1043
   -0.2085
   -0.3128
   -0.6255
   -0.5213
   -0.4170

v=v/sum(v)

v =
    0.0455
    0.0455
    0.0909
    0.1364
    0.2727
    0.2273
    0.1818

Page Ranks:

  1. Node 5 has the highest page rank
  2. node 6
  3. node 7
  4. node 4
  5. node 3
  6. node 1 and node 2

Adding the vector values from v should equal 1

check = sum(v)

check =
     1

Problem 3

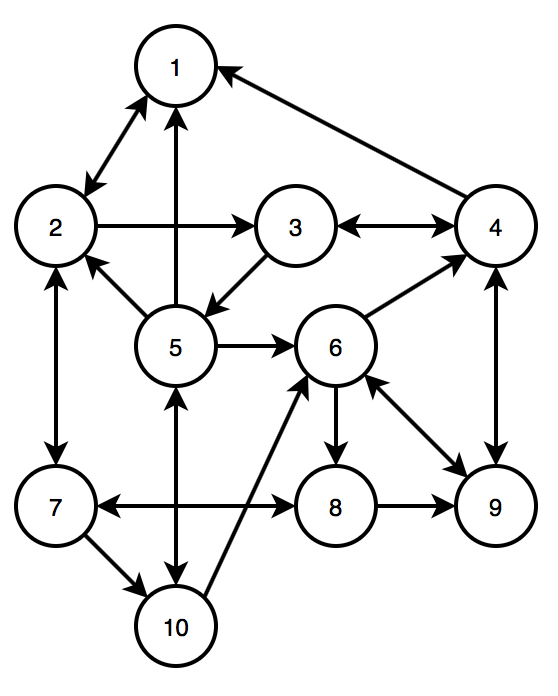

Make your own graph and find page ranks.

C=[0 1 0 1 1 0 0 0 0 0
   1 0 0 0 0 0 1 0 0 0;
   0 1 0 1 1 0 0 0 0 0;
   0 0 1 0 0 1 0 0 1 0;
   0 0 1 0 0 0 0 0 0 1;
   0 0 0 0 1 0 0 0 1 1;
   0 1 0 0 0 0 0 1 0 0;
   0 0 0 0 0 1 1 0 0 0;
   0 0 0 1 0 1 0 1 0 0;
   0 0 0 0 0 0 1 0 0 0]

C =
     0     1     0     1     1     0     0     0     0     0
     1     0     0     0     0     0     1     0     0     0
     0     1     0     1     1     0     0     0     0     0
     0     0     1     0     0     1     0     0     1     0
     0     0     1     0     0     0     0     0     0     1
     0     0     0     0     1     0     0     0     1     1
     0     1     0     0     0     0     0     1     0     0
     0     0     0     0     0     1     1     0     0     0
     0     0     0     1     0     1     0     1     0     0
     0     0     0     0     0     0     1     0     0     0

D=diag(sum(C,1))

D =
     1     0     0     0     0     0     0     0     0     0
     0     3     0     0     0     0     0     0     0     0
     0     0     2     0     0     0     0     0     0     0
     0     0     0     3     0     0     0     0     0     0
     0     0     0     0     3     0     0     0     0     0
     0     0     0     0     0     3     0     0     0     0
     0     0     0     0     0     0     3     0     0     0
     0     0     0     0     0     0     0     2     0     0
     0     0     0     0     0     0     0     0     2     0
     0     0     0     0     0     0     0     0     0     2

G=C*inv(D)

G =
  Columns 1 through 7
         0    0.3333         0    0.3333    0.3333         0         0
    1.0000         0         0         0         0         0    0.3333
         0    0.3333         0    0.3333    0.3333         0         0
         0         0    0.5000         0         0    0.3333         0
         0         0    0.5000         0         0         0         0
         0         0         0         0    0.3333         0         0
         0    0.3333         0         0         0         0         0
         0         0         0         0         0    0.3333    0.3333
         0         0         0    0.3333         0    0.3333         0
         0         0         0         0         0         0    0.3333
  Columns 8 through 10
         0         0         0
         0         0         0
         0         0         0
         0    0.5000         0
         0         0    0.5000
         0    0.5000    0.5000
    0.5000         0         0
         0         0         0
    0.5000         0         0
         0         0         0

[eigvec,eigval]=eig(G)

eigvec =
  Columns 1 through 4
  -0.4218 + 0.0000i  -0.3726 + 0.0000i  -0.0200 + 0.0878i  -0.0200 - 0.0878i
   0.5855 + 0.0000i  -0.4513 + 0.0000i  -0.1129 - 0.0399i  -0.1129 + 0.0399i
  -0.4218 + 0.0000i  -0.3726 + 0.0000i  -0.0200 + 0.0878i  -0.0200 - 0.0878i
   0.3547 + 0.0000i  -0.4410 + 0.0000i  -0.2154 - 0.0115i  -0.2154 + 0.0115i
   0.1776 + 0.0000i  -0.2256 + 0.0000i   0.3027 - 0.0799i   0.3027 + 0.0799i
  -0.0196 + 0.0000i  -0.2769 + 0.0000i  -0.4233 - 0.2458i  -0.4233 + 0.2458i
  -0.2863 + 0.0000i  -0.2359 + 0.0000i   0.2374 - 0.2773i   0.2374 + 0.2773i
   0.1154 + 0.0000i  -0.1709 + 0.0000i  -0.0283 + 0.3728i  -0.0283 - 0.3728i
  -0.1918 + 0.0000i  -0.3248 + 0.0000i   0.5018 + 0.0000i   0.5018 + 0.0000i
   0.1080 + 0.0000i  -0.0786 + 0.0000i  -0.2218 + 0.1059i  -0.2218 - 0.1059i
  Columns 5 through 8
  -0.0482 + 0.0000i   0.0618 - 0.0440i   0.0618 + 0.0440i   0.0000 + 0.0000i
   0.5036 + 0.0000i  -0.1428 + 0.0590i  -0.1428 - 0.0590i  -0.3586 + 0.0000i
  -0.0482 + 0.0000i   0.0618 - 0.0440i   0.0618 + 0.0440i   0.2390 + 0.0000i
   0.0354 + 0.0000i  -0.3945 - 0.0186i  -0.3945 + 0.0186i  -0.3586 + 0.0000i
  -0.4967 + 0.0000i   0.5780 + 0.0000i   0.5780 + 0.0000i   0.7171 + 0.0000i
   0.4397 + 0.0000i   0.3738 - 0.0108i   0.3738 + 0.0108i  -0.0000 + 0.0000i
  -0.2981 + 0.0000i  -0.2478 + 0.0332i  -0.2478 - 0.0332i  -0.0000 + 0.0000i
  -0.1610 + 0.0000i   0.0576 - 0.1594i   0.0576 + 0.1594i   0.2390 + 0.0000i
  -0.2657 + 0.0000i  -0.3356 - 0.1462i  -0.3356 + 0.1462i  -0.2390 + 0.0000i
   0.3392 + 0.0000i  -0.0124 + 0.3308i  -0.0124 - 0.3308i  -0.2390 + 0.0000i
  Columns 9 through 10
   0.0765 + 0.1475i   0.0765 - 0.1475i
   0.3616 + 0.1988i   0.3616 - 0.1988i
   0.0765 + 0.1475i   0.0765 - 0.1475i
  -0.5332 + 0.0000i  -0.5332 + 0.0000i
   0.2462 + 0.0422i   0.2462 - 0.0422i
  -0.1856 - 0.1462i  -0.1856 + 0.1462i
   0.2571 - 0.0483i   0.2571 + 0.0483i
   0.0236 - 0.1345i   0.0236 + 0.1345i
  -0.4837 - 0.1457i  -0.4837 + 0.1457i
   0.1610 - 0.0613i   0.1610 + 0.0613i
eigval =
  Columns 1 through 4
  -0.8834 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   1.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.4525 + 0.2006i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.4525 - 0.2006i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  Columns 5 through 8
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  -0.2930 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0428 + 0.2481i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0428 - 0.2481i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i  -0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i
  Columns 9 through 10
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.0000 + 0.0000i
   0.4979 + 0.0897i   0.0000 + 0.0000i
   0.0000 + 0.0000i   0.4979 - 0.0897i

v=eigvec(:,2)

v =
   -0.3726
   -0.4513
   -0.3726
   -0.4410
   -0.2256
   -0.2769
   -0.2359
   -0.1709
   -0.3248
   -0.0786

v=v/sum(v)

v =
    0.1263
    0.1530
    0.1263
    0.1495
    0.0765
    0.0939
    0.0800
    0.0579
    0.1101
    0.0267

Page Ranks:

  1. Node 2 has the highest page rank
  2. node 4
  3. node 1 and node 3
  4. node 9
  5. node 6
  6. node 7
  7. node 5
  8. node 8
  9. node 10

Adding the vector values from v should equal 1

check = sum(v)

check =
     1


Published with MATLAB® R2017a
